PEL InverterOn Turbo DC Ultimate T3 (H&C) Air Conditioner
1 / 3

PEL

12K Turbo DC Ultimate T3

PEL InverterOn Turbo DC Ultimate T3 (H&C) Air Conditioner

Size

3 options

Product Details

Model

12K Turbo DC Ultimate T3

Price

Rs. 128,900

COD available

Quantity

1
← Continue Shopping

Product Description

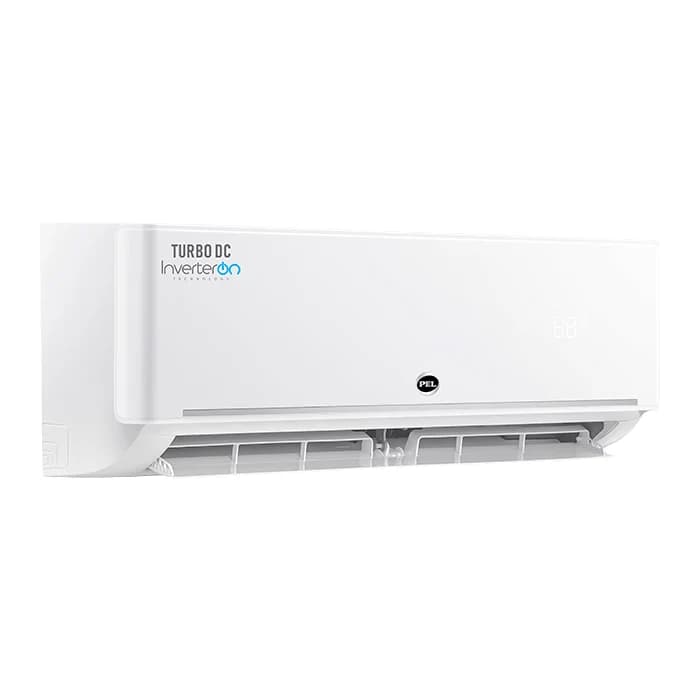

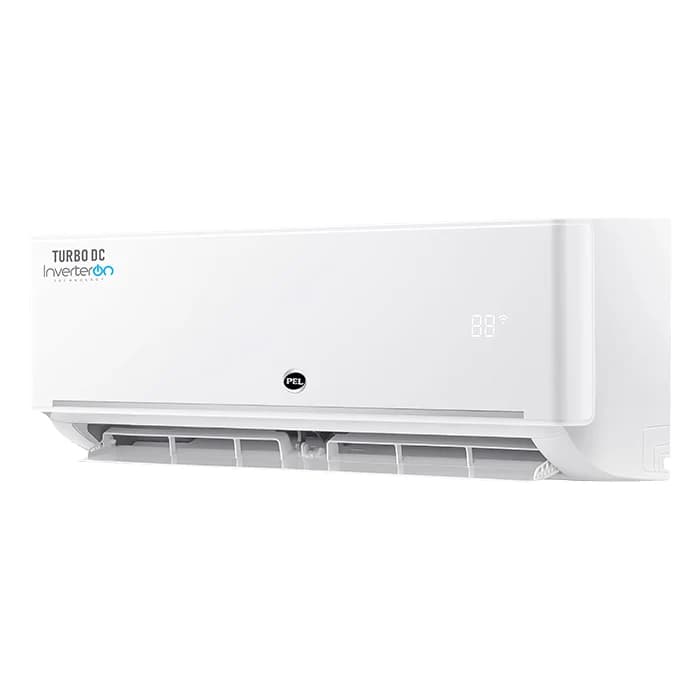

The PEL InverterOn Turbo DC Ultimate T3 (H&C) Air Conditioner is an inverter air conditioner designed for both heating and cooling. It is available in 1 Ton, 1.5 Ton and 2 Ton variants, with each size offering different cooling and heating capacities, power requirements, airflow volume, noise levels and unit dimensions. The 1 Ton 12K variant provides a 12,000 BTU capacity, the 1.5 Ton 18K variant provides an 18,000 BTU capacity, and the 2 Ton 24K variant provides a 24,000 BTU capacity. All variants use R32 refrigerant and operate on a 220–240V, 50Hz, single-phase power supply.

Product Highlights

Key features of this product

  • Inverter technology
  • Heating and cooling
  • Turbo DC Ultimate series
  • T3
  • R32 refrigerant
  • 220–240V power supply
  • 50Hz frequency

Product Specifications

Product details and specifications

Capacity1 Ton
BTU12000
Range Capacity - Cooling1004 (100~1182) W
Range Current - Cooling4.5 (1.1~5.4) A
Rated Current9.0 A
Range Capacity - Heating925 (240~1083) W
Rated Power Input1800 W
Energy Efficiency Ratio (EER)3.6
Power Supply220–240V, 1Ph, 50Hz
Refrigerant TypeR32
Indoor Air Flow Volume560 m³/h
Outdoor Noise Level56 dB(A)
Indoor Unit Weight (Net)8.6 kg
Outdoor Unit Weight (Net)23.3 kg
Indoor Unit Dimensions802 × 200 × 295 mm
Outdoor Unit Dimensions765 × 303 × 555 mm

Frequently Asked Questions

Common questions about this product and ordering.

What sizes are available?

The PEL InverterOn Turbo DC Ultimate T3 is available in 1 Ton, 1.5 Ton and 2 Ton variants.

What is the price of the Turbo DC Ultimate T3?

The 1 Ton variant is priced at Rs.128,900, the 1.5 Ton variant at Rs.164,900, and the 2 Ton variant at Rs.228,900.

Is the Turbo DC Ultimate T3 an inverter AC?

Yes. The PEL Turbo DC Ultimate T3 is an inverter air conditioner.

Does it support heating and cooling?

Yes. The Turbo DC Ultimate T3 is an H&C air conditioner designed for both heating and cooling.

What refrigerant does it use?

The Turbo DC Ultimate T3 uses R32 refrigerant.

What are the BTU capacities?

The 1 Ton variant has a 12,000 BTU capacity, the 1.5 Ton variant has an 18,000 BTU capacity, and the 2 Ton variant has a 24,000 BTU capacity.
