PEL InverterOn Jumbo DC Prime Plus Wifi T3 (H&C) Air Conditioner
1 / 3

PEL

12K Jumbo DC Prime Plus

PEL InverterOn Jumbo DC Prime Plus Wifi T3 (H&C) Air Conditioner

Size

2 options

Product Details

Model

12K Jumbo DC Prime Plus

Price

Rs. 138,900

COD available

Quantity

1
← Continue Shopping

Product Description

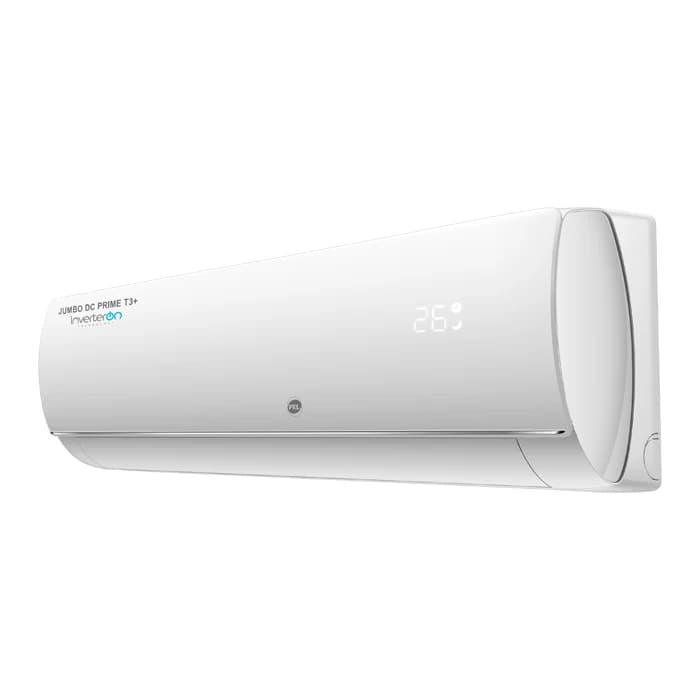

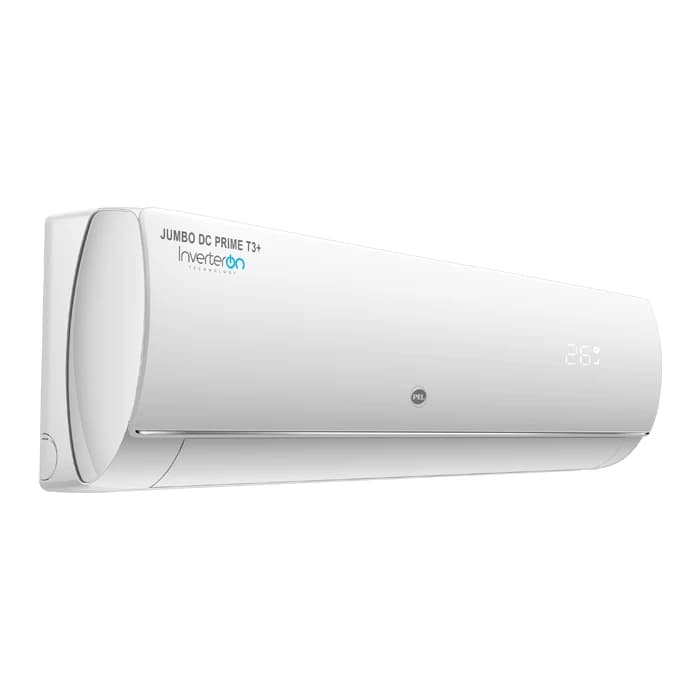

The PEL InverterOn Jumbo DC Prime Plus Wifi T3 (H&C) Air Conditioner is an inverter air conditioner designed for heating and cooling. It is available in 1 Ton and 1.5 Ton variants. The 1 Ton 12K Jumbo DC Prime Plus provides a 12,000 BTU capacity, while the 1.5 Ton 18K Jumbo DC Prime Plus provides an 18,000 BTU capacity. Both variants use R32 refrigerant and operate on a 220–240V, 50Hz, single-phase power supply.

Product Highlights

Key features of this product

  • Inverter technology
  • Heating and cooling
  • Jumbo DC Prime Plus series
  • WiFi
  • T3
  • R32 refrigerant
  • 220–240V power supply
  • 50Hz frequency

Product Specifications

Product details and specifications

Capacity1 Ton
BTU12000
Rated Capacity - Cooling3400 (1000-3770) W
Rated Capacity - Heating3420 (1000-3810) W
Rated Running Current - Cooling5.8 (1.5-9.0) A
Rated Running Current - Heating4.7 (1.5-10.0) A
Maximum Current7.54 A
Rated Power Cooling1130 (290-1500) W
Rated Power Heating922 (290-1720) W
Maximum Input Power3400 W
Energy Efficiency Ratio (EER)3.01
Power Supply220–240V, 50Hz, 1Ph
RefrigerantR32/570 Gas
Air Flow Volume550/550 m³/h
Outdoor Noise Level50.00 dB(A)
Indoor Unit Weight (Net)8/10.5 kg
Outdoor Unit Weight (Net)24/26 kg
Indoor Unit Dimensions811 × 278 × 198 mm
Outdoor Unit Dimensions777 × 498 × 290 mm

Frequently Asked Questions

Common questions about this product and ordering.

What sizes are available?

The PEL InverterOn Jumbo DC Prime Plus Wifi T3 is available in 1 Ton and 1.5 Ton variants.

What is the price of the Jumbo DC Prime Plus?

The 1 Ton variant is priced at Rs.138,900, while the 1.5 Ton variant is priced at Rs.181,900.

Is the Jumbo DC Prime Plus an inverter AC?

Yes. The PEL Jumbo DC Prime Plus is an inverter air conditioner.

Does it support heating and cooling?

Yes. The Jumbo DC Prime Plus is an H&C air conditioner designed for heating and cooling.

What refrigerant does it use?

The Jumbo DC Prime Plus uses R32 refrigerant.

What are the BTU capacities?

The 1 Ton variant has a 12,000 BTU capacity, while the 1.5 Ton variant has an 18,000 BTU capacity.
