PEL InverterOn Fit Graphite T3 (H&C) Air Conditioner
1 / 3

PEL

12K Fit Graphite

PEL InverterOn Fit Graphite T3 (H&C) Air Conditioner

Size

3 options

Product Details

Model

12K Fit Graphite

Price

Rs. 128,900

COD available

Quantity

1
← Continue Shopping

Product Description

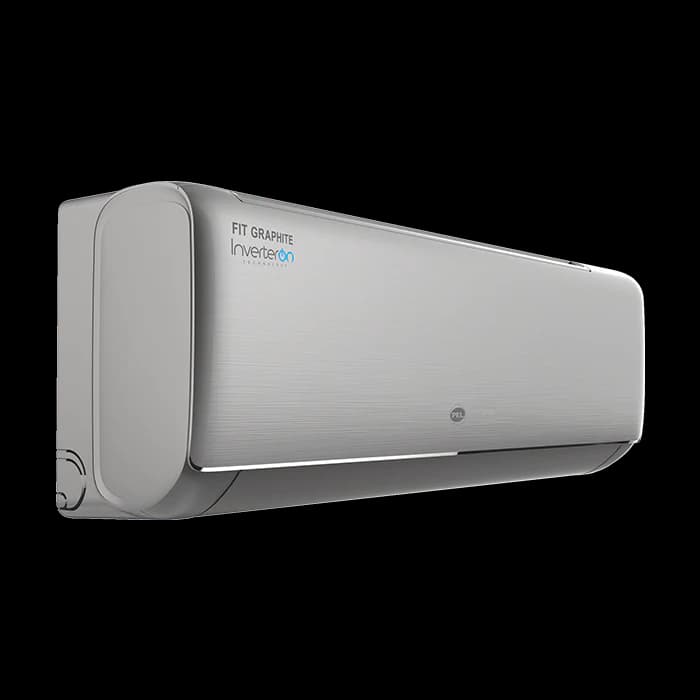

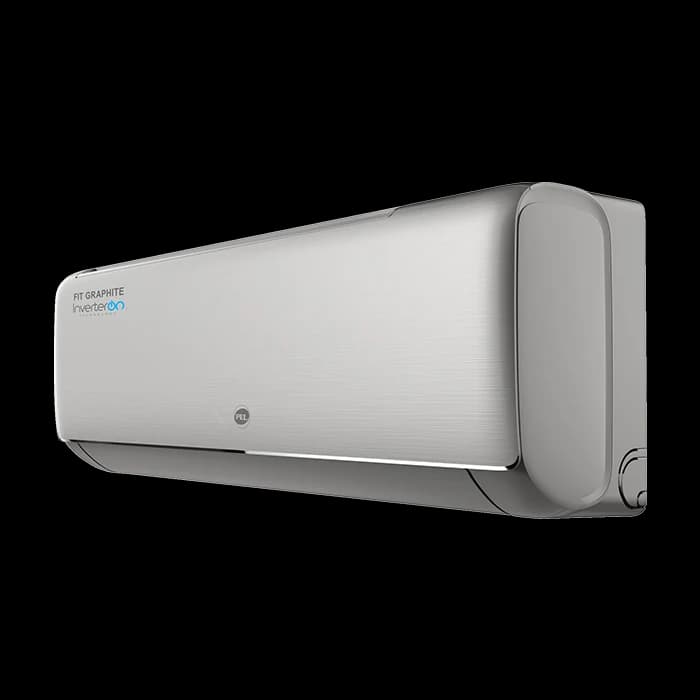

The PEL InverterOn Fit Graphite T3 (H&C) Air Conditioner is an inverter air conditioner designed for both heating and cooling. It is available in 1 Ton, 1.5 Ton and 2 Ton variants, with different cooling and heating capacities, power requirements, airflow volumes, noise levels and unit dimensions. The 1 Ton 12K Fit Graphite provides a 12,000 BTU capacity, the 1.5 Ton 18K variant provides an 18,000 BTU capacity, and the 2 Ton 24K variant provides a 24,000 BTU capacity. All variants use R32 refrigerant and operate on a 220–240V, 50Hz power supply.

Product Highlights

Key features of this product

  • Inverter technology
  • Heating and cooling
  • Fit Graphite series
  • T3
  • R32 refrigerant
  • 220–240V power supply
  • 50Hz frequency
  • Rotary compressor

Product Specifications

Product details and specifications

Capacity1 Ton
BTU12000
Rated Capacity - Cooling3517 (1400-4000) W
Rated Capacity - Heating3517 (1400-4200) W
Rated Power Consumption - Cooling1150 (400-1450) W
Rated Power Consumption - Heating950 (400-1100) W
Rated Running Current - Cooling5.3 (2.0-6.0) A
Rated Running Current - Heating4.6 (2.0-6.0) A
Max. Input Power1600 W
Max. Input Current8.5 A
EER Cooling2.9
Power Supply220–240V, 50Hz
RefrigerantR32
Air Flow Volume600 m³/h
Indoor Noise Level41 dB(A)
Outdoor Noise Level52 dB(A)
Indoor Unit Weight (Net)8 kg
Outdoor Unit Weight (Net)22 kg
Indoor Unit Dimensions761 × 295 × 200 mm
Outdoor Unit Dimensions705 × 279 × 530 mm
Compressor TypeRotary

Frequently Asked Questions

Common questions about this product and ordering.

What sizes are available?

The PEL InverterOn Fit Graphite T3 is available in 1 Ton, 1.5 Ton and 2 Ton variants.

What is the price of the Fit Graphite?

The 1 Ton variant is priced at Rs.128,900, the 1.5 Ton variant at Rs.162,900, and the 2 Ton variant at Rs.222,900.

Is the Fit Graphite an inverter AC?

Yes. The PEL Fit Graphite is an inverter air conditioner.

Does it support heating and cooling?

Yes. The Fit Graphite is an H&C air conditioner designed for both heating and cooling.

What refrigerant does it use?

The Fit Graphite uses R32 refrigerant.

What are the BTU capacities?

The 1 Ton variant has a 12,000 BTU capacity, the 1.5 Ton variant has an 18,000 BTU capacity, and the 2 Ton variant has a 24,000 BTU capacity.
